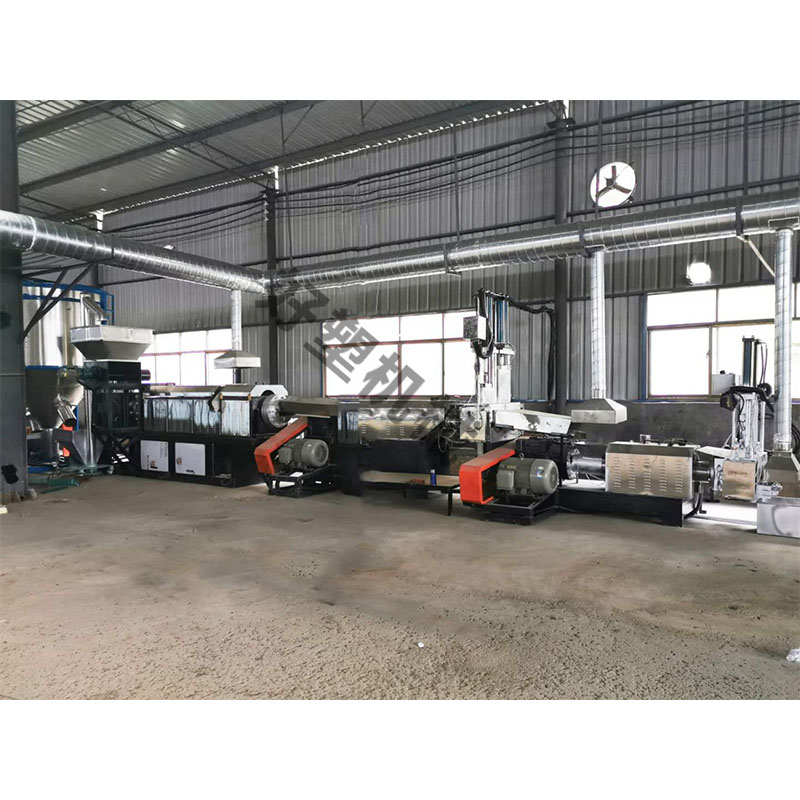

Plastic granulator (crushing material)
Uses: The plastic granulator is used to granulate various plastics, mainly for ABS, PP, PS, PP-R, PET, ABS+PC, POM and other plastics.
Features:
1. The screw is exclusively developed and designed, with independent research and development archives, the whole machine and its parts are reasonably equipped, and the circuits are all heated by three fires and one zero.
2. The screw is designed for the characteristics of the material, the output is high, the material made of the material is good in gloss and full of particles, the configuration of the whole machine is increased, the service life of the equipment is increased, the appearance is rationalized and the design has a unique aesthetic feeling.
3. The reasonable design of the equipment increases the production volume, makes the products more valuable, reduces the maintenance time of the workers, and reduces the maintenance cost. ,
4. The granulator has the characteristics of high output and low energy consumption, large torque gearbox and electric motor. The screw needle of this machine is specially designed to have the effect of no dead ends and no iron jamming, which effectively improves the production capacity and increases the plasticization effect of the plastic. Exhaust, double exhaust paper, dry materials, wet materials, washing materials can be fully drained and exhausted, so that the particles are strong and full of gloss.
5. High-quality electrical and drive equipment make the machinery and equipment safer and more reliable in use.
The main technical parameters
Model |
Diameter(mm) |
Length(mm) |
Power(kw) |
Diameter(mm) |
Length(mm) |
Power(kw) |
Temperature |
Output(t/24h) |
100 |
100 |
2800 |
30 |
110 |
1100 |
7.5 |
9组 |
4~5 |
110 |
110 |
3200 |
37 |
120 |
1100 |
11 |
9组 |
5~6 |
120 |
120 |
3200 |
45 |
120 |
1100 |
15 |
9组 |
6~7 |
130 |
130 |
3200 |
55 |
130 |
1200 |
18.5 |
9组 |
7~8 |
140 |
140 |
3800 |
75 |
140 |
1400 |
30 |
9组 |
8~9 |
150 |
150 |
4200 |
90 |
140 |
1400 |
30 |
9组 |
10~12 |
160 |
160 |
4500 |
110 |
150 |
1600 |
37 |
9组 |
12~16 |
Note: The following length unit is millimeter (MM), power unit is KW, and output is how many tons per 24 hours
|
