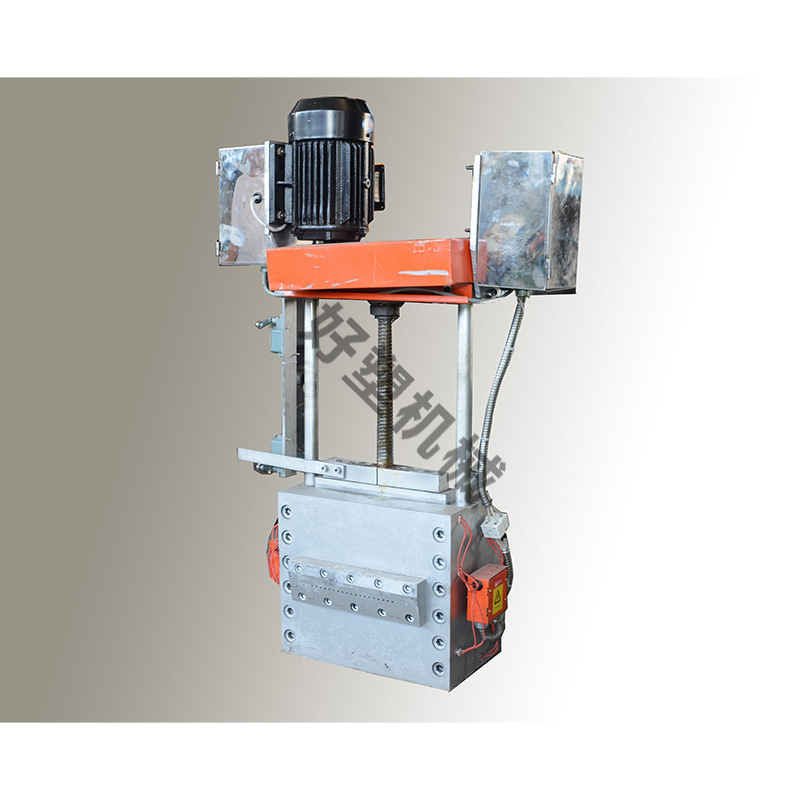

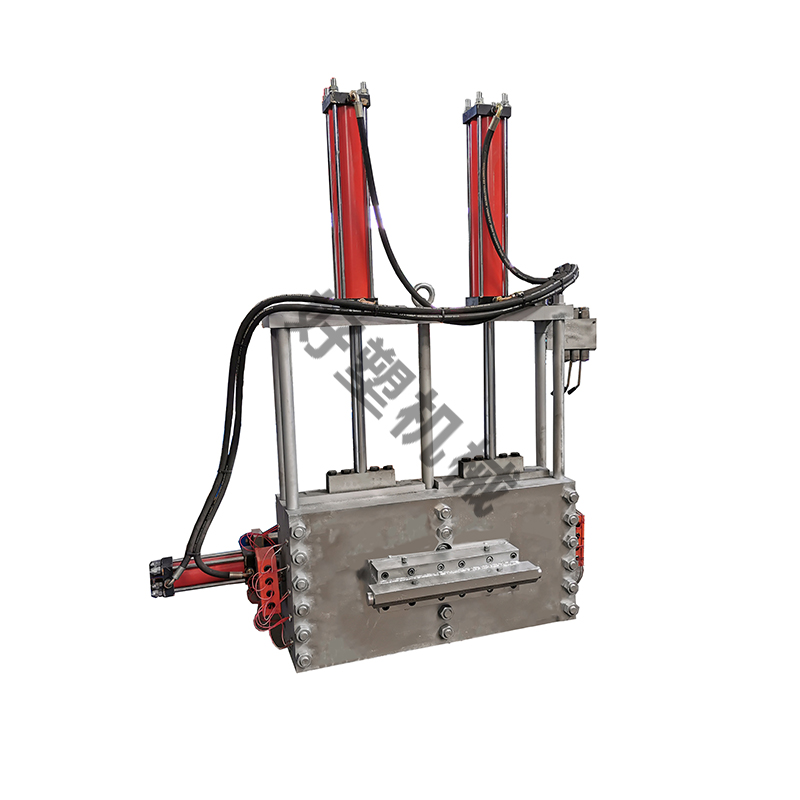

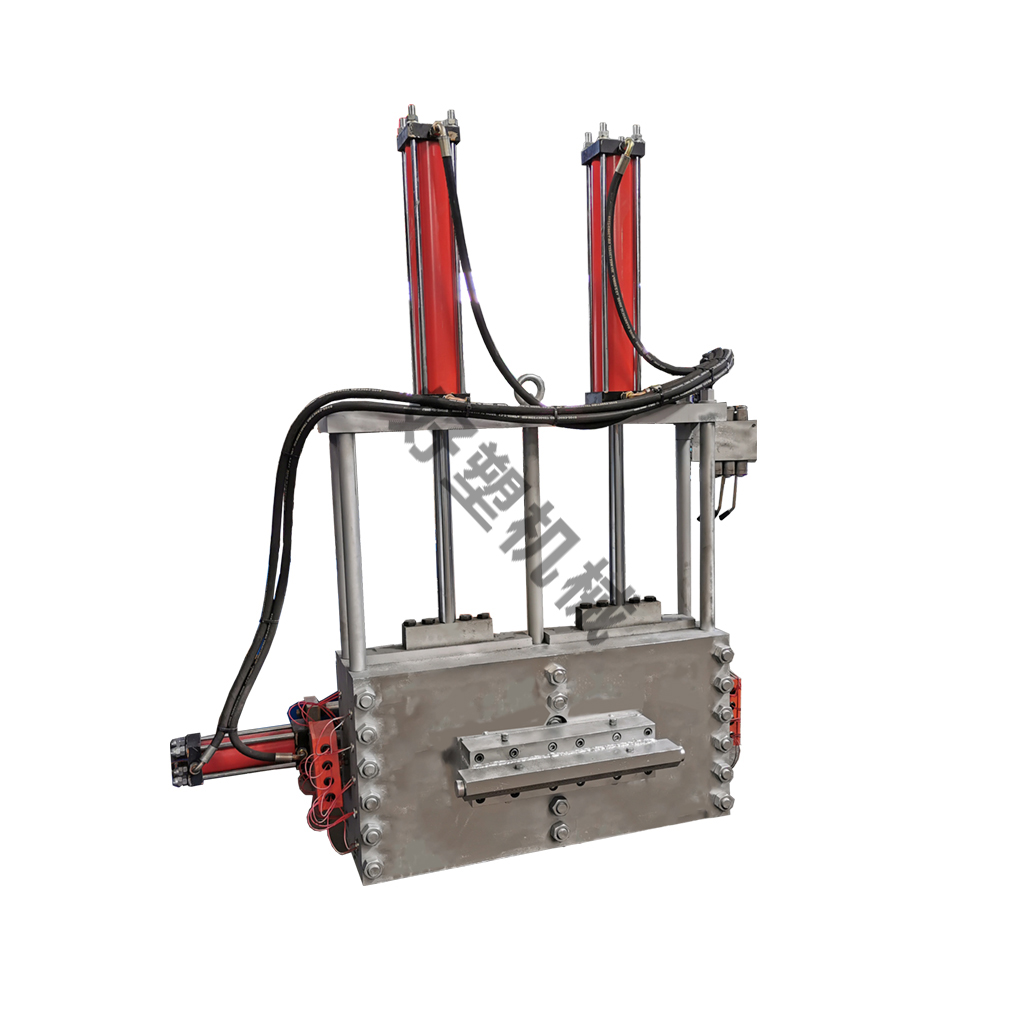

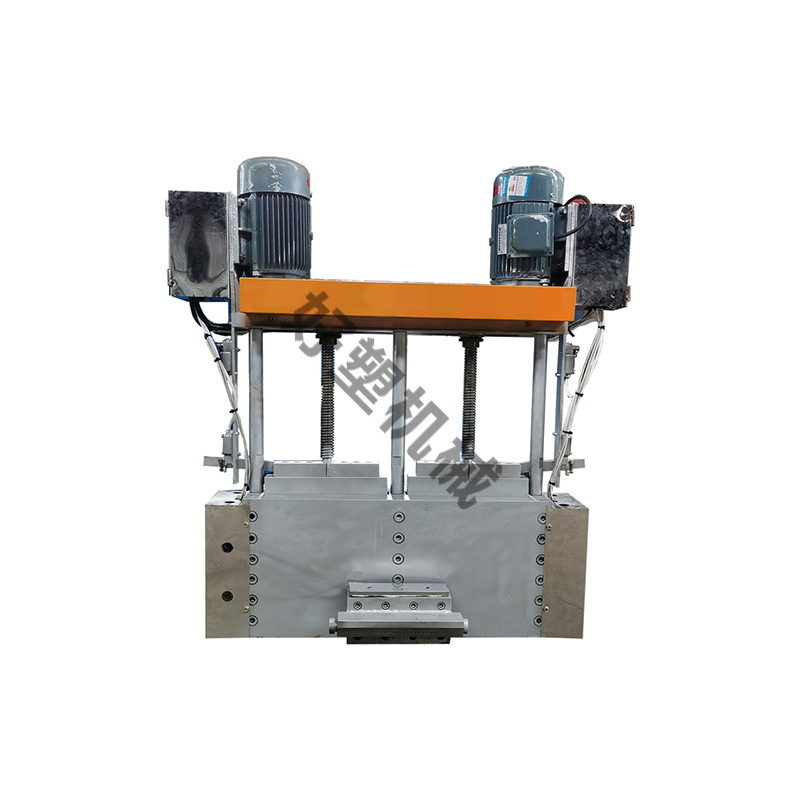

Hydraulic die head screen changer
Uses and products are suitable for the main and auxiliary machines of the plastic granulator to filter impurities and wire drawing
Features:
1. There is no need to stop the machine to replace the filter, and the operation is simple and labor-saving.
2. Ensure the continuity of granulation and increase the granulation output.
3. The carburizing heat treatment of the screen (filter plate) has a hardness of 50 to 55 degrees and a long service life. The filter screen is processed by CNC. Our 300*300 filter holes are 5mm*1116 holes in diameter, with a larger filtering area and better filtering effect.
The main technical parameters
model |
Single and double station |
Filter area (mm) |
Screen thickness (mm) |
transfer method |
300*1 |
single |
300*300 |
420*350*60 |
Electric gear-hydraulic |
300*2 |
double |
300*300 |
420*350*60 |
Electric gear-hydraulic |
350*1 |
single |
350*350 |
450*390*70 |
Hydraulic |
350*2 |
double |
350*350 |
450*390*70 |
Hydraulic |
400*1 |
single |
400*400 |
520*450*70 |
Hydraulic |
400*2 |
double |
400*400 |
520*450*70 |
Hydraulic |
500*2 |
double |
500*500 |
600*550*80 |
Hydraulic |
|
